NEW Potato Planter

NEW Potato Planter

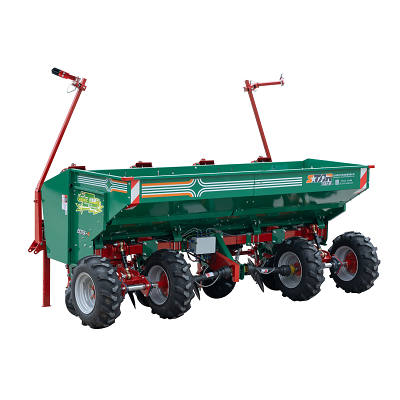

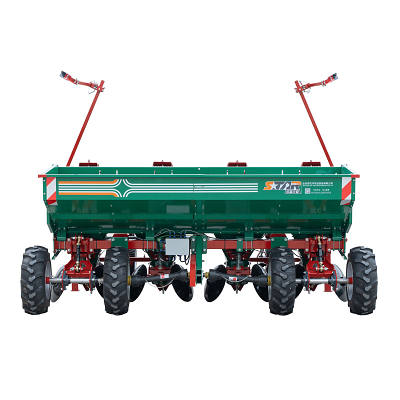

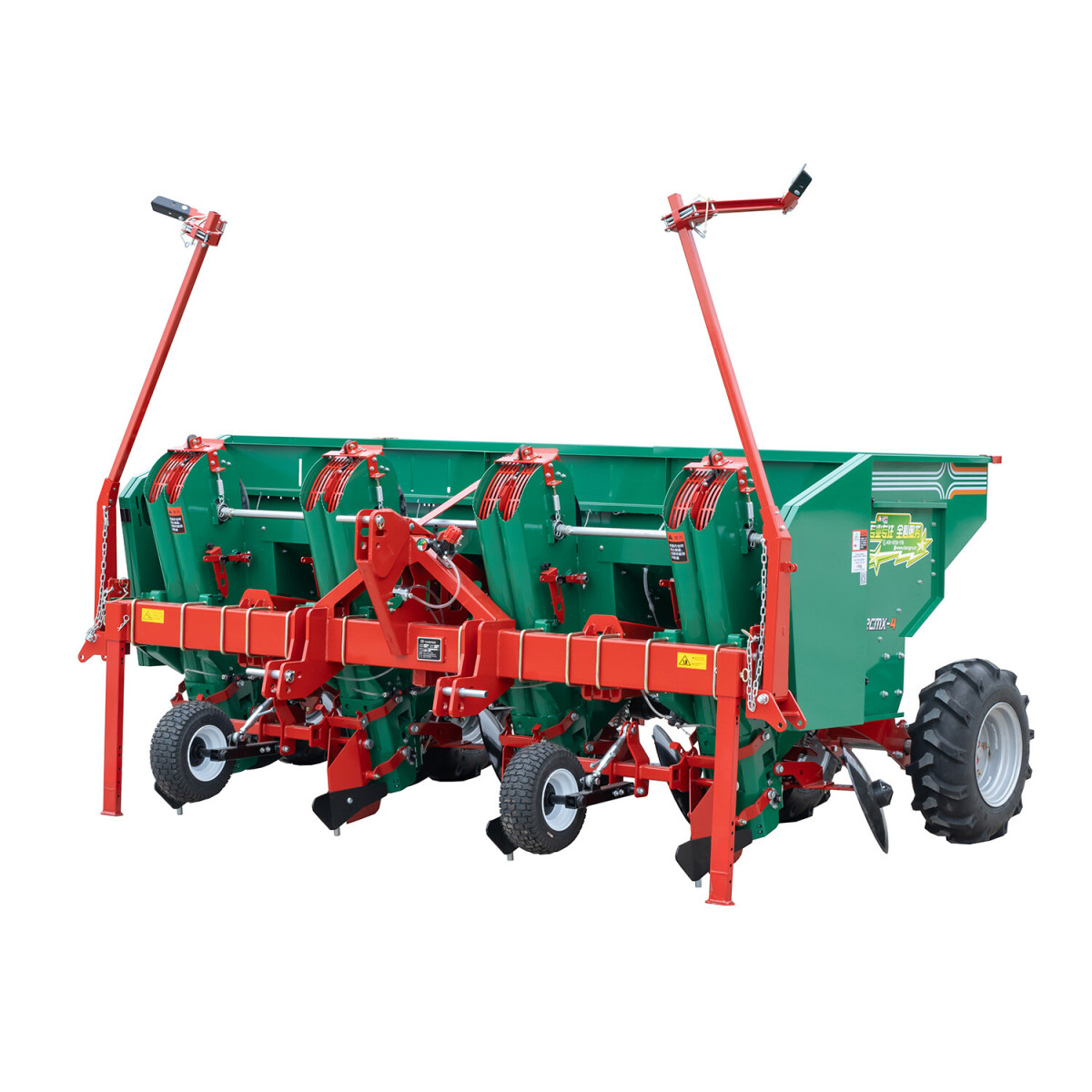

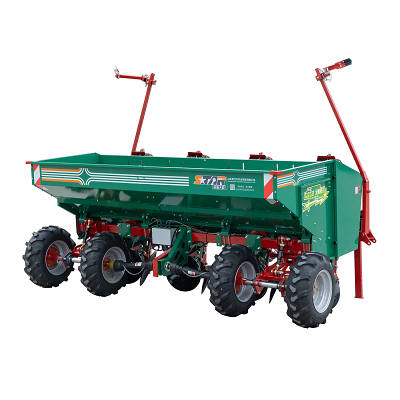

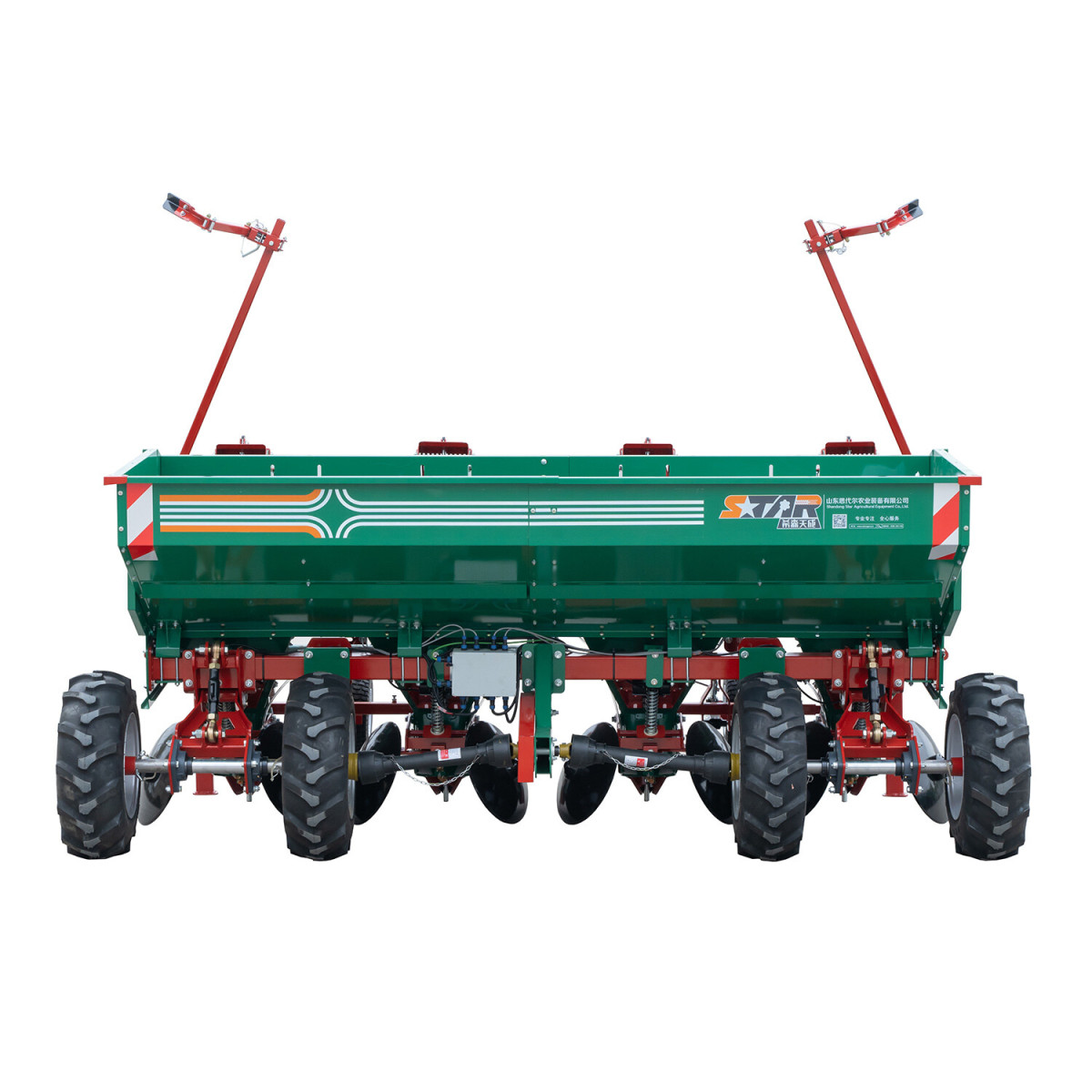

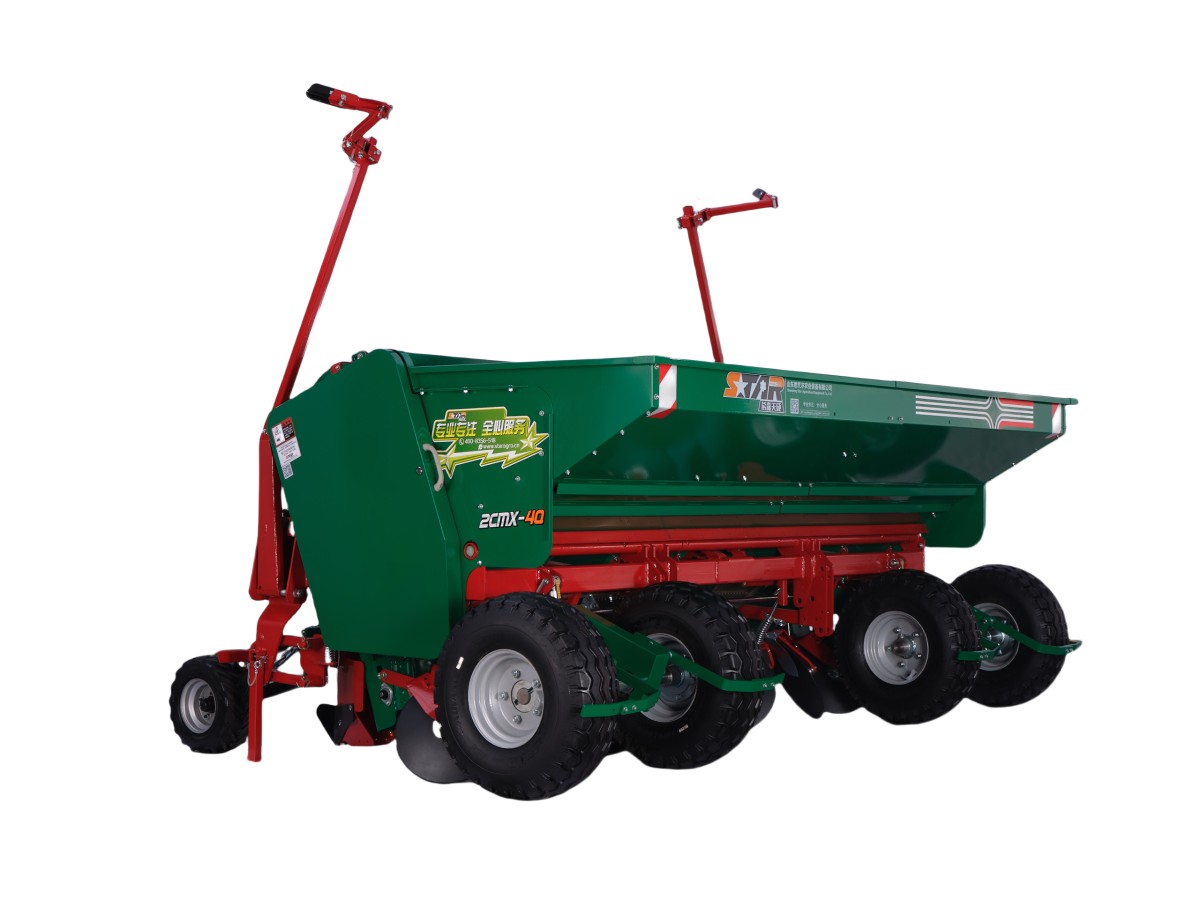

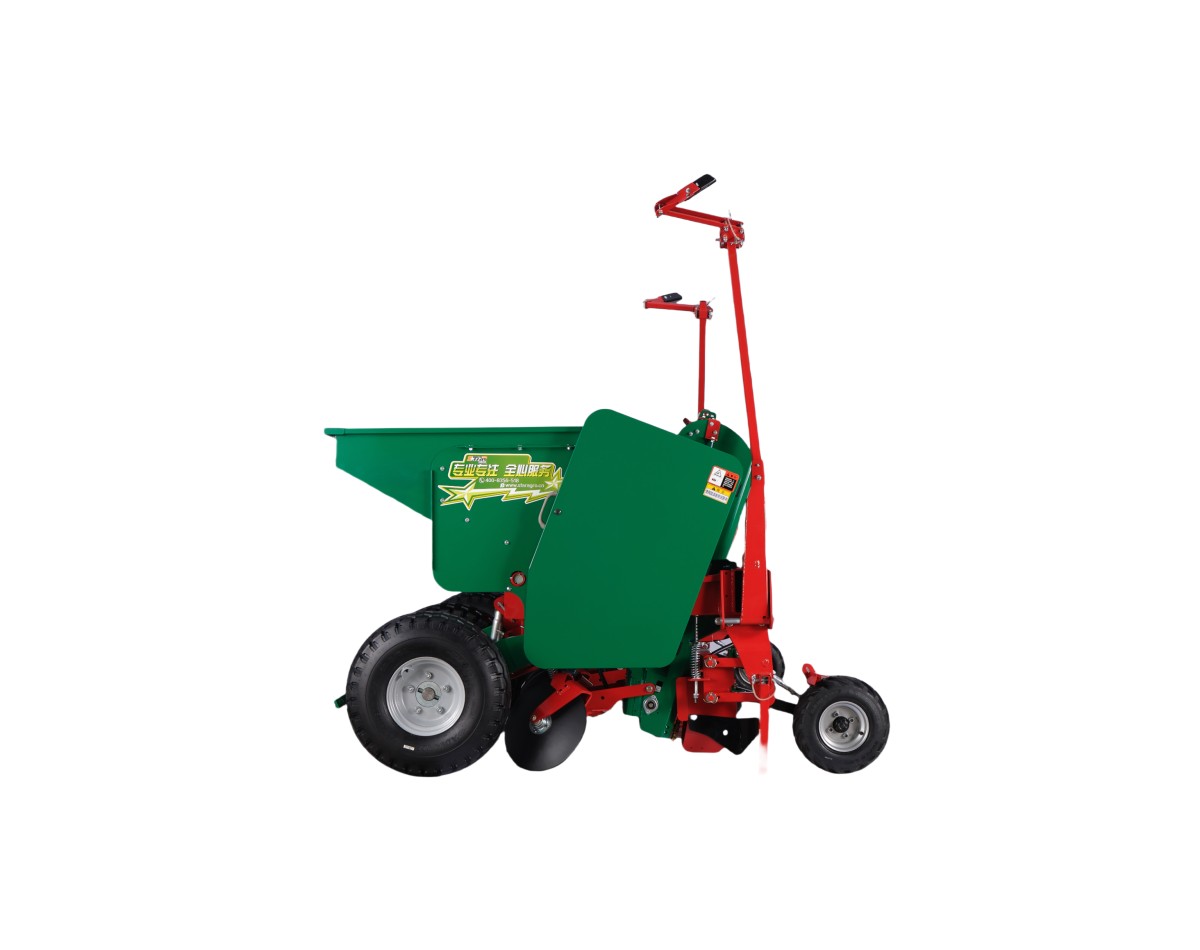

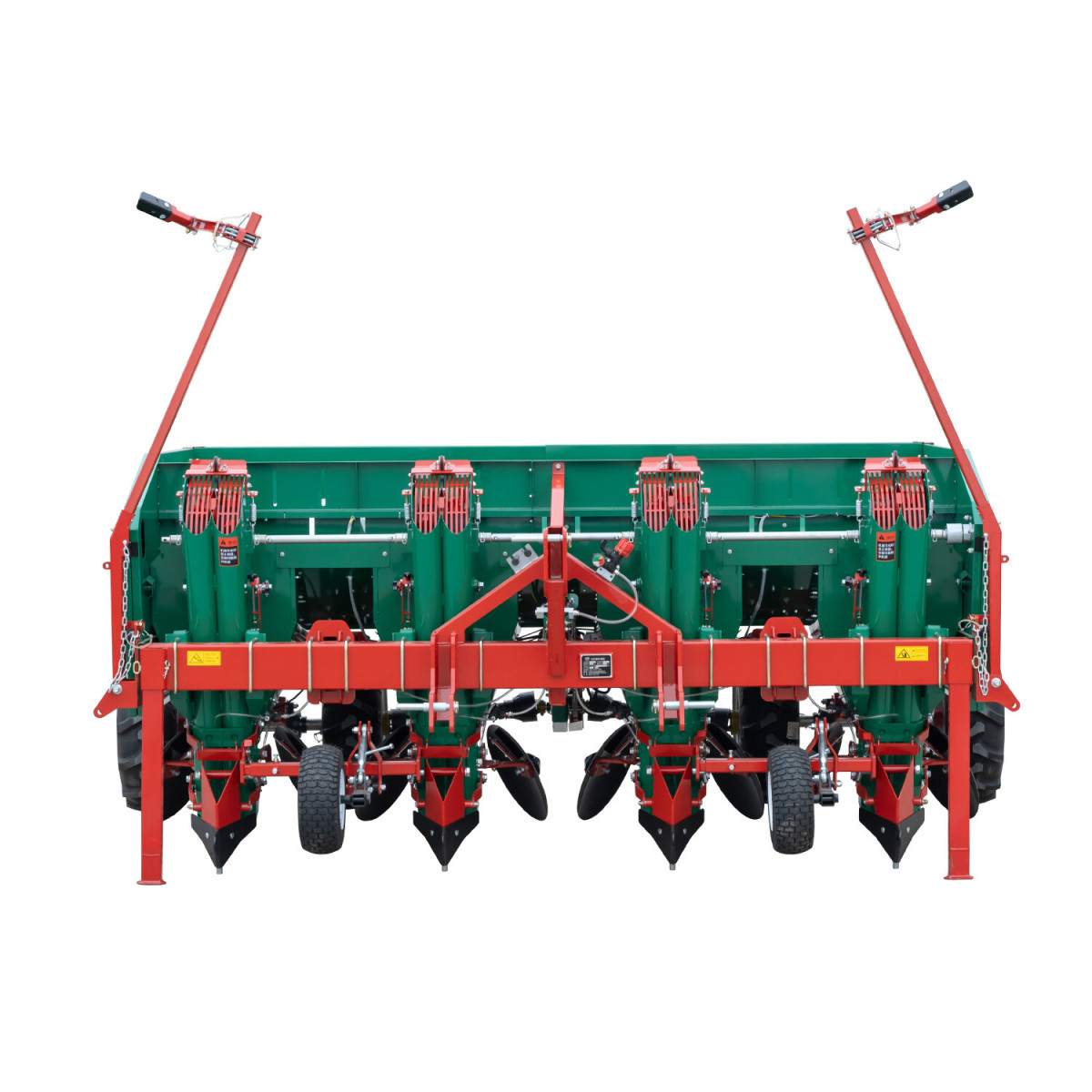

​The 2CMX-4K potato planter is a large scale machine suitable for large area mechanized potato planter.With advanced features such as high compounding, high precision, and high adaptability, and can complete a series of operations such as ditching, planting, ridging, fertilization, and spraying.
GET A QUOTE
Share

The 2CMX-4K potato planter is a large scale machine suitable for large area mechanized potato planter.With advanced features such as high compounding, high precision, and high adaptability, and can complete a series of operations such as ditching, planting, ridging, fertilization, and spraying.


Advantages


1. Sowing efficiency is high.
Can be a one-time completion of ditching, planting, ridge, fertilization, spraying and a series of operations.

2. High precision sowing.
Adapting advanced scoop type seed planter device,vibration,shaking,chain tensioning technology and Electronic vibrating device.low seed leakage rate, reseed rate, high sowing accuracy.
3,Strong adaptability.
Planting depth and width, ridge width and row spacing can be adjusted according to planting habits in different regions.
4.Advanced potato ridge control technology.
the existing potato planter mostly uses plough type supporting soil plate or disk type supporting soil plate, its Angle is not easy to adjust, irregular ridge shape. The potato planter broke through the inherent mode and developed the disc type ridge loader, which expanded the application range, making the applicable row spacing higher than the current 600-700mm to 700-900mm, and the suitable plant spacleakageing higher than the current 200-350mm to 170-440mm. The ridge shape control is more diversified and can meet different agronomic requirements.
5,Pesticide spraying uniform.
The spraying system uses PTFE nozzle with higher degree of atomization, not only its Angle can be adjusted, but also the traditional spraying after planting potato is changed to front and back spraying, so that the coverage is more tight.

Performance Parameter


ItemUnitParameter   Index
Structural   style/Mounted
Overall   dimensionmm2455×3864×1615
Machine   weightkg1770
Tractor   engine powerhp125-200
Applicable   row spacingmm800-900
Working   row(ridge) number/4   ridges and 4 rows
Seed   case volumeL2200
Fertilizer   case volumeL700(Optional)
Rated   capality of medicine chestL350(Optional)
